Full Coil Line

Automatic Duct Fabricating System

Vicon Full Coil Line

Because your bottom line is what matters most to us. From the patented coil loading system (the fastest in the industry) to a unique rollformer design that's engineered to maximize uptime, the Vicon Coil Line manages profitable duct work from every angle.

Reliable performance, high productivity and superior part transfer is just the beginning. The Vicon Coil Line is backed by our exclusive commitment to provide you with nationwide one-call service, training and support for as long as you own your machine.

Vicon Coil Line software program for Windows®

ViSoft Software is menu-driven, user-friendly and can be set to SMACNA standards or customized to your shop standards. Continually updated and supported by Vicon's experienced team of programming engineers, ViSoft ensures enhanced productivity and superb part accuracy.

Loading a coil spool

Coil Line Overview

Vicon Justification Calculator

Coil Line Justification Calculator
Click on the calculator to the left to view how quickly the Full Coil Line pays for itself and starts making a profit.

Vicon Software

Available Coil Line Software
Click on the screenshot to the left to view available software for the Full Coil Line.

Segments of the Vicon Full Coil Line

Duct-Line Express

Automatic Rectangular Duct Blanking System

The Duct-Line Express front end is expandable to a Full Coil Line system at anytime. This practical solution includes an uncoiler (patented), feeder, straightener unit, beader, notching unit and heavy duty shear.

Lockseam System

The Lockseam System is built for ease of use and reliability. The system accepts beaded, notched and sheared blanks and automatically forms the Pittsburgh or Snaplock seams.

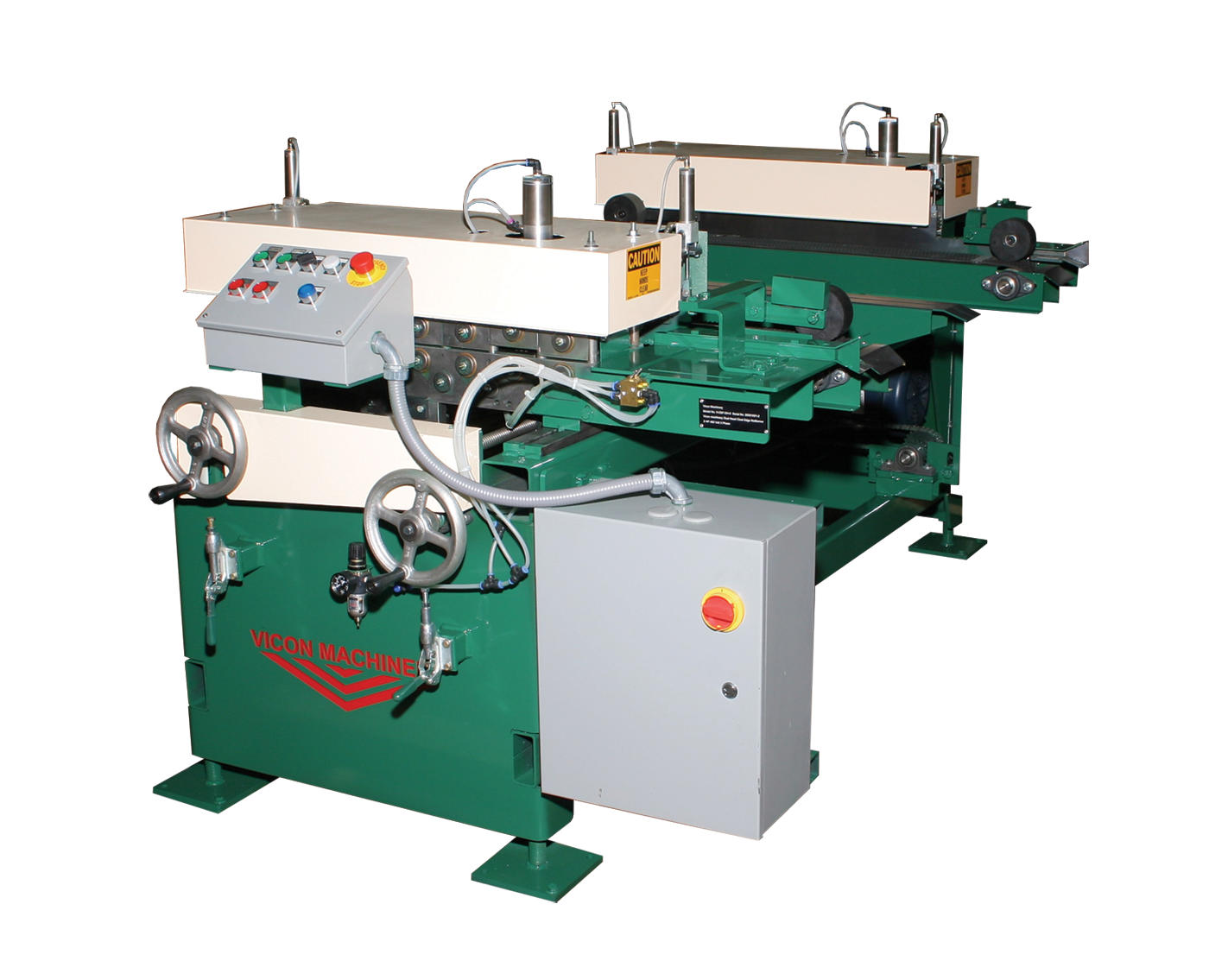

Dual Head Cleat Edge Former

Model V-CEF-DH-5

The Dual Head Cleat Edge Former rollforms a 7/16" cleat edge on both ends of the duct.

Dual Head TDX Rollformer

Model V-TDX-DH-5

The Dual Head TDX Rollformer will produce SMACNA's T25a or T25b connections. Material is formed to produce a SMACNA approved transverse flange connection.

Automatic Duct Liner Application System

The Automatic Duct Liner Application System uncoils duct liner, applies liner adhesive to the sheet metal and automatically pins the liner to the sheet metal. This machine can work with various types of liner including but not limited to Armaflex® and K-Flex® insulation.

Full Wrap Automatic Brake System

Model V-516B-FW

The Full Wrap Automatic Brake System is a heavy duty hydraulic bending unit. Your duct is completely formed and ready to be seamed once the duct is automatically ejected by the computer controlled gripper unit. The system is smooth, fast, accurate and reliable.
