| Fabricator Relay Panels |

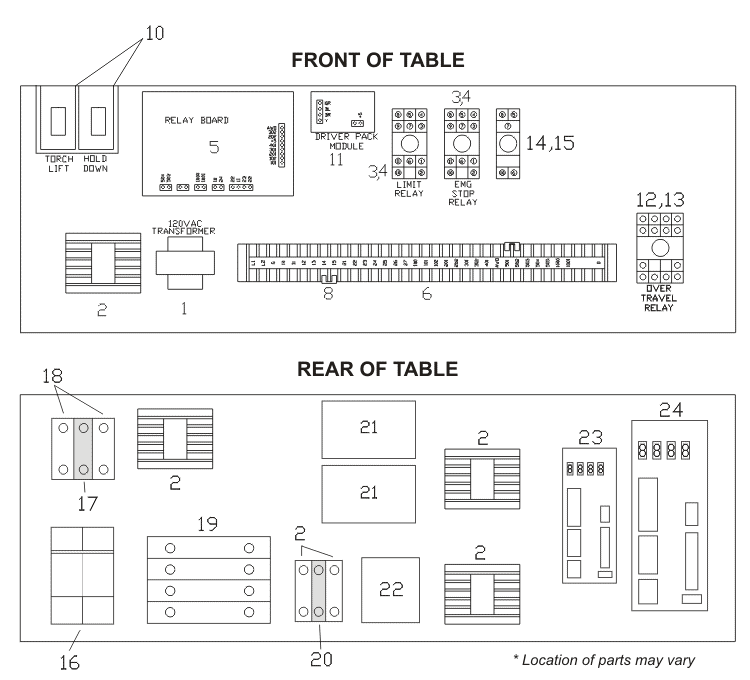

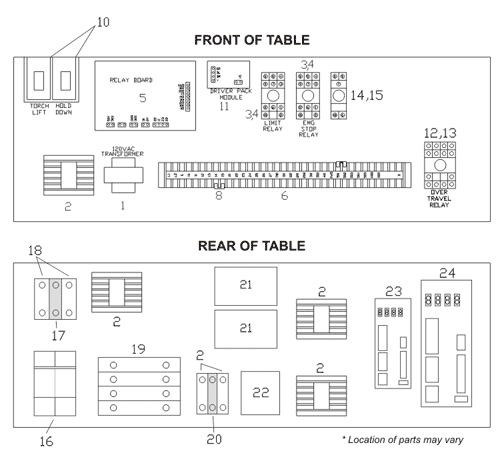

Click on diagram for larger image
|
| # in Diagram |
Part Number | Part Description |
Price |
|
|
| 1 | 273-1511 | 12.6 VAC Transformer | $75.00 | Quantity |
| 2 | WTB2-W4 | 30amp Terminal block 22-10awg | $2.00 | Quantity |
| 3 | C3-A30X | 11 Pin Relay | Call for price | |
| 4 | 793100 | 11 Pin Relay Base | $21.45 | Quantity |
| 5 | 980202B | ASM Relay Board | $1450.00 | Quantity |
| 6 | PA-000008 | Terminal Block Assembly | $41.11 | Quantity |
| 8 | WTB2-W4/3CB | Terminal Jumpers and Screws - 3 position | $6.44 | Quantity |
| 8 | WTB2-W4/4CB | Terminal Jumpers and Screws - 4 position | $7.84 | Quantity |
| 8 | WTB2-W4/2CB | Terminal Jumpers and Screws - 2 position | $4.44 | Quantity |
| 10 | PA-000090 | 2 Station Valve Assembly - 2 STATION VALVE ASSY | $353.10 | Quantity |
| 11 | | | $ | Quantity |
| 12 | RU4SMA110 | 14 Pin Relay | $26.66 | Quantity |
| 13 | SY4S-05C | 5 Amp Socket | $35.20 | Quantity |
| 14 | C10-A10BX | 5 Pin Relay 24V - 725172 | $36.99 | Quantity |
| 15 | S10 | 5 PIn Relay Base | $16.53 | Quantity |
| 16 | CHM2DI | 2 Pole fuse holder | $139.88 | Quantity |
| 17 | WTB2-W6/10G | 16-8 AWG Ground Block | $7.97 | Quantity |
| 18 | WTB2-W10 | 65amp Terminal Block 16-6 AWG | $6.06 | Quantity |
| 19 | A9-30-10-84 | 3 Pole Contactor | $159.30 | Quantity |
| 20 | WTB2-W2/4G | 22-12 Awg ground block | $8.30 | Quantity |
| 21 | | | $ | Quantity |
| 22 | CCM 1343-ND | 5 amp Filter | $80.56 | Quantity |
| 23 | SGDH-04AE | Y Axis Amp | Call for price | |
| 24 | SGDH-08AE-S | X Axis Amp | Call for price | |
|
