Edge King Torch Lift

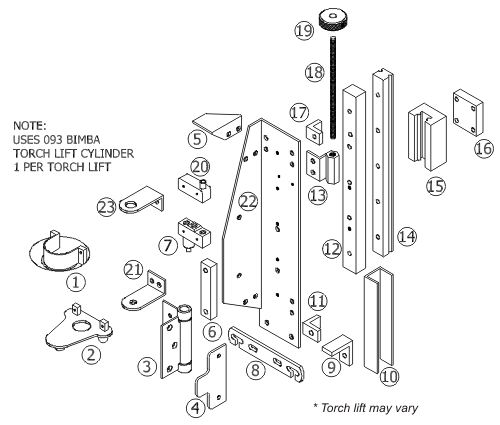

Click on diagram for larger image
# in Diagram	Part Number	Part Description	Price

Note	BIMBA 093	Torch Lift Cylinder	$78.57	Quantity
1	PA-000001	Ski Cup	$96.95	Quantity
2	PA-000002	Roller Cup	$116.26	Quantity
3	N184-564	Torch Holder Spring Hinge	$32.24	Quantity
4	D-8H-01-000-0011A-A	Torch Holder Spring Hinge Lever	$34.16	Quantity
5	D-8H-01-000-0010A-A	Standard Torch Holder Lift Bumper	$28.30	Quantity
6	D-8H-01-000-0013A-A	Torch Holder Spacer Block	$17.91	Quantity
7			$	Quantity
8	D-8H-01-000-0012A-A	Torch Holder Ski Cup Mounting Bracket	$63.11	Quantity
9	D-8HI-00-000-0564-A	Torch Holder Height Adjustment Angle	$20.80	Quantity
10	D-8H-01-000-0001A-A	Torch Holder Torch Tube Channel	$40.01	Quantity
11	D-8H-01-000-0014-A	Torch Holder Lower Linear Stop	$18.72	Quantity
12	D-8H-01-012-0268-B	Torch Holder Linear Bar Backing Nut	$30.79	Quantity
13	D-8H-01-006-0103A-A	Torch Holder Coupler Nut	$24.18	Quantity
14	D-8F-00-000-0752-C	Linear Slide Bar	$114.58	Quantity
15	HGH20CAZ0C	Torch Holder Linear Car	$114.00	Quantity
16	D-8H-01-007-0102-B	Torch Holder Linear Car Spacer Block 1/2"	$29.64	Quantity
17	D-8H01-000-0015-A	Torch Holder Upper Linear Stop	$41.60	Quantity
18	D-8H-01-000-0007A-A	Torch Holder Adjustment Rod	$36.48	Quantity
19	D-8H-01-000-0006A-A	Torch Holder Adjustment Knob	$31.89	Quantity
20	E47PA2	Torch Safety Switch Boot	$6.81	Quantity
21	D-8H-00-001-0015A-A	Lower Bimba Bracket	$24.04	Quantity
22	D-8H-00-002-0015A-C	Torch Holder Main Body	$153.80	Quantity
23	D-8H-00-001-0014A-A	Upper Bimba Bracket	$24.04	Quantity
