DL8000 High Speed Carriage

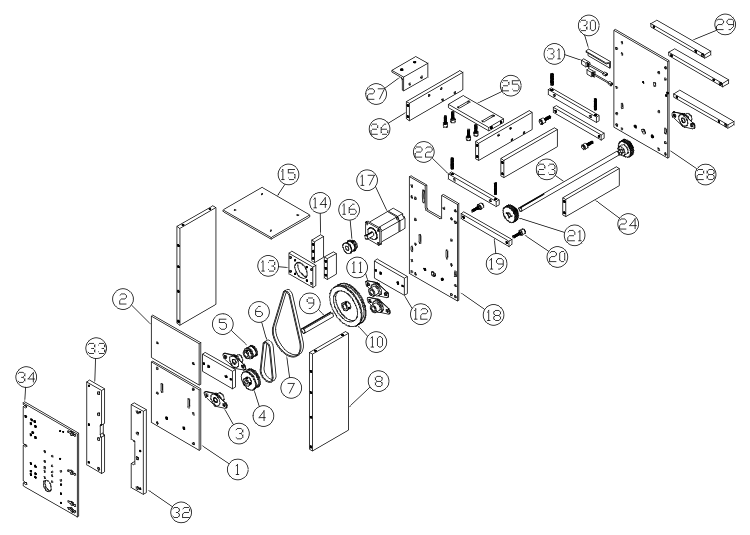

Click on diagram for larger image
# in Diagram	Part Number	Part Description	Price

1	D-8H-10-000-0001-A	High Speed Carriage Belt Cover Plate	$141.48	Quantity
2	D-8H-10-000-0012-A	High Speed Carriage Belt Access Plate	$243.14	Quantity
3	6908	Lower Drive Shaft Bearing	$75.50	Quantity
4	18L050SP16	Lower Drive Shaft Pulley, 18 Tooth Pulley 5/8" Bore, 3/16"kw, Alum	$64.33	Quantity
5			$	Quantity
6	135L050	High Speed Carriage Shaft to Shaft Belt	$39.06	Quantity
7	225L050K	X Axis Motor Belt	$30.56	Quantity
8	D-8H-10-000-0030-A	High Speed Carriage Belt Box Tie Bar	$39.52	Quantity
9	D-8H-10-000-0017-A	High Speed Carriage Upper Drive Shaft	$72.11	Quantity
10	40L050 x 5/8	Upper Drive Shaft 40 Tooth Pulley	$162.55	Quantity
11	6910	Upper Drive Shaft Nice Bearing	$73.00	Quantity
12	D-8H-10-000-0020-A	High Speed Carriage Bearing Subplate	$41.42	Quantity
13	D-8H-10-000-0004-A	High Speed Carriage Motor Mount Plate	$98.73	Quantity
14	D-8H-10-000-0005-A	High Speed Carriage Motor Standoff	$37.81	Quantity
15	D-8H-10-000-0021-B	High Speed Carriage Belt Box Top Cover	$112.27	Quantity
16	10L050 x 14mm	High Speed Carriage Motor Pulley	$16.64	Quantity
17	SGMAH-04AAF41	High Speed Carriage Motor	Call for price
18	D-8H-10-002-0012-A	Carriage Motor Plate	$186.65	Quantity
19	D-8H-10-000-0009-A	High Speed Carriage Bearing Mounting Bar	$45.28	Quantity
20	77R4A	Carriage Bearing	$37.02	Quantity
21	2040 x 1/2 Nonshouldered	40 Tooth 2" pinion 1/2" wide 1/2" bore nyloil Nonshouldered Gear How to identify correct gear	$168.78	Quantity
22	D-8H-10-000-0008-A	High Speed Carriage Bearing Adjustment Bar	$53.89	Quantity
23	D-8H-10-000-0018-A	High Speed Carriage Lower Drive Shaft	$73.57	Quantity
24	D-8H-10-000-0016-A	High Speed Carriage Lower Tie Bar	$31.09	Quantity
25	D-8H-10-000-0015-A	High Speed Carriage Upper Bearing Bar	$74.11	Quantity
26	D-8H-10-000-0014-A	High Speed Carriage Upper Tie Bar	$45.07	Quantity
27	D-8H-10-000-0022-B	High Speed Carriage Nylatrack Mounting Angle	$36.68	Quantity
28	D-8H-10-002-0023-A	Carriage Torch Mounting Plate	$219.98	Quantity
29	D-8HI-00-000-0568-A	Carriage Torch Holder Mounting Bar	$74.31	Quantity
30	D-2D-01-011-0700-A	High Speed Carriage Switch Mounting Angle	$26.31	Quantity
31	E52-18RU04-C	Y Axis Proxy Switch	$384.09	Quantity
32	D-8H-01-001-0311-B	Carriage Rotozip Mounting Bar	$57.77	Quantity
33	D-8H-01-001-0312-B	Carriage Rotozip Mounting Bar	$57.77	Quantity
34	D-8HI-00-001-0566-A	Carriage Mounting Plate	$241.98	Quantity
