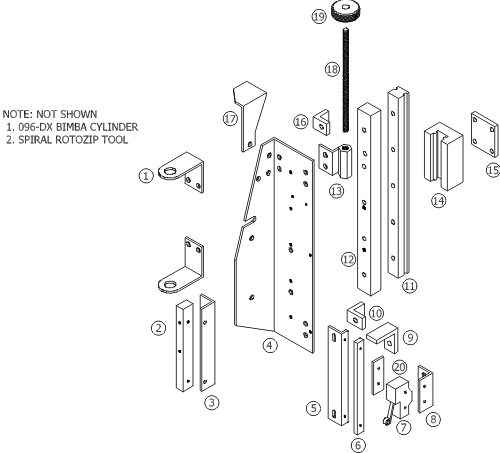

DL8000 Spiral Saw Lift

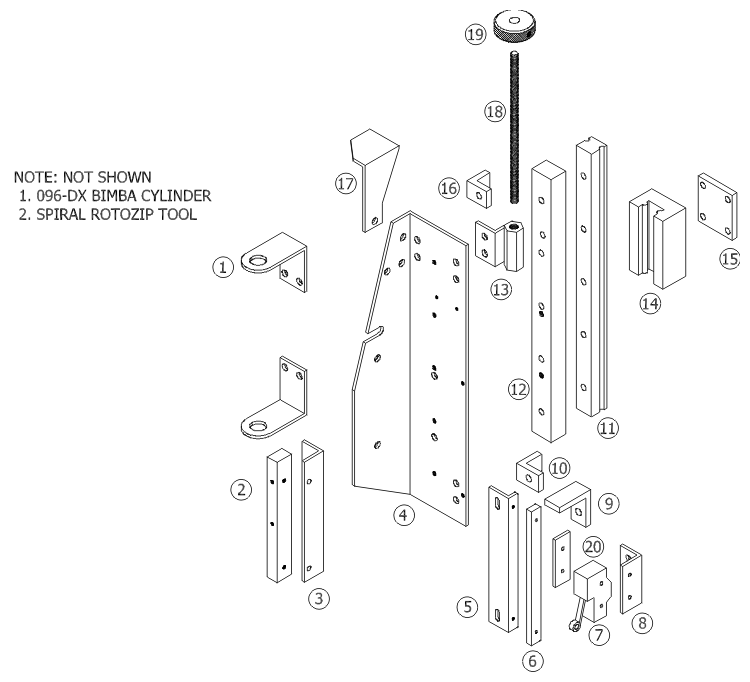

Click on diagram for larger image
# in Diagram	Part Number	Part Description	Price

Note 2	DW660	Spiral Saw DW660	$295.84	Quantity
Note 1	096-DX	Torch Lift Cylinder	$135.00	Quantity
1	D-8HI-00-000-0566-A	DL Torch Holder Bimba Bracket	$39.52	Quantity
2	D-DL8-00-000-0016-A	Rotozip Torch Lift Mounting Bar	$19.12	Quantity
3	D-DL8-00-000-0015-A	Rotozip Torch Lift Mounting Angle	$57.20	Quantity
4	D-8H-00-002-0015A-C-rotozip	Rotozip Torch Lift Main Body Angle	$57.20	Quantity
5	D-2F-00-000-0450-A	Rotozip Torch Lift Switch Accuator Mounting Angle	$39.52	Quantity
6	D-2F-00-000-0452-A	Rotozip Torch Lift Switch Accuator	$36.40	Quantity
7	E47BMS42	Roller Switch	$64.77	Quantity
8	D-8HI-00-000-0565-A	Roller Switch Mounting Angle	$36.40	Quantity
9	D-8HI-00-000-0564-A	Torch Holder Height Adjustment Angle	$20.80	Quantity
10	D-8H-01-000-0014-A	Torch Holder Lower Linear Stop	$18.72	Quantity
11	D-8F-00-000-0752-C	Linear Slide Bar	$114.58	Quantity
12	D-8H-01-002-0268-B	Bar Backing Nut	$38.95	Quantity
13	D-8H-01-006-0103A-A	Torch Holder Coupler Nut	$24.18	Quantity
14	HGH20CAZ0C	Torch Holder Linear Car	$114.00	Quantity
15	PA-000010	Rotozip Torch Lift Car Spacers 1/4" & 1/16"	$33.28	Quantity
16	D-8H01-000-0015-A	Torch Holder Upper Linear Stop	$41.60	Quantity
17	D-DL8-00-000-0017-A	Rotozip Torch Lift Bumper	$32.24	Quantity
18	D-8H-01-000-0007A-A	Torch Holder Adjustment Rod	$36.48	Quantity
19	D-8H-01-000-0006A-A	Torch Holder Adjustment Knob	$31.89	Quantity
20	D-8H-00-001-0017A-A	Rotozip Torch Lift Switch Backing Plate	$13.52	Quantity
